成衣洗染、整燙設備的專業製造廠••
Clothes washing ,dye and ironing professional manufacturer..
金礦 180M , 250M , 350M 全自動洗濯機

8段式洗衣及脫水速度,任何布料皆能輕鬆操作。
具備正逆轉的最高洗淨效果,又能脫去剛濕的水分,效果可達70%。
立基式避震系統,不需基礎工程,完全防震,安靜無噪音,機體小,不佔空間。
原料入口三道式自動傾倒系統,洗槽口徑大,便於取放衣物,工作輕鬆愉快。
FRP外殼永不生鏽。
顯示幕LED跳格式微電腦控制系統,故障顯示幕保養容易。
採用日本變頻式驅動馬達,單相220V,一般冷氣電源即可使用。

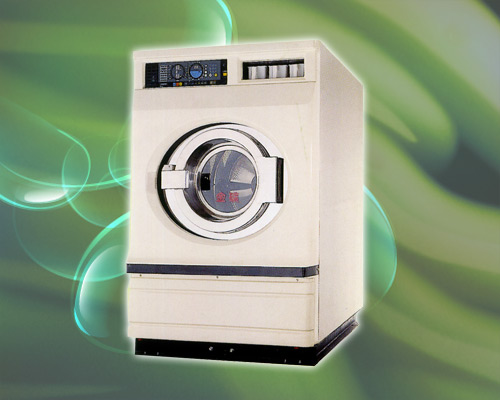

GOLDMINE AUTO WASHER

Micro computer operation key board can be set in five different laundry proceduses with simple operating system.
It will reach the cleanest condition with both obverse and reverse laundry. Also the results of wet clothes can be reached to 70%.
It is shake proof with no noise,and it’s mini size which save a lot of space.
The diameter of drum is big enough for easy to take out or put in clothes.


型號Model 處理量Capacity
(kg)
內筒規格Drum Dimension 電力Electric Power 馬達Moter
(HP)
內筒迴轉速RPM 接管口徑Pipe(inch) 重量Weight
(kg)
機械尺寸M/C
Dimension(mm)
直徑X深度mm
DiameterXdepth
容量(l)
Capacity
洗濯Wash 平衡Balance 脫水Dehydrate 給水
Inlet
投入口
Drum Inlet
排水Outlet 蒸氣Steam 長 L 寬 W 高 H
180M 18 753X525 234

3.7kw

5

44

66

850

1” ½” 2 ½” ½” 850 1100 1240 1680
250M 25 920X465 309

5.5kw

7.5

42

62

780

1” ½” 2 ½” ½” 1100 1300 1310 1720
350M 35 920X660 439

7.5kw

10

42

62

780

1” ½” 2 ½” ½” 1200 1300 1550 1720
